SAE J517 Type 100 R5 Hydraulic Hose with Polymeric Fiber Braid Cover

SAE J517 type 100 R5 hydraulic hose is suitable for impacted medium pressure petroleum-based oil, lubricating oil, overheated lubricating oil, air and water hydraulic pipelines, such as pneumatic brake, power steering, fuel filter, turbocharger, cylinder and other equipment of heavy commercial vehicles. There is no need to strip the outer rubber layer in withholding joints for this kind of hydraulic hose. It is composed of three parts: tube, reinforcement and cover. Tube is made from black oil and heat resistant synthetic rubber, making hose have excellent performance in delivering oils. And this kind of hydraulic hose can be used in high temperature environment. Reinforcement is made from one layer of high tensile steel wire braid and one layer of textile fiber, making hose have solid structure and suitable for high working pressure environment. Cover is made from polymeric fiber braid immersed by synthetic rubber, making hose resistant to weather, ozone and aging.

SAE J517 100 R5 hydraulic hose is suitable for delivering medium pressure hydraulic fluids.

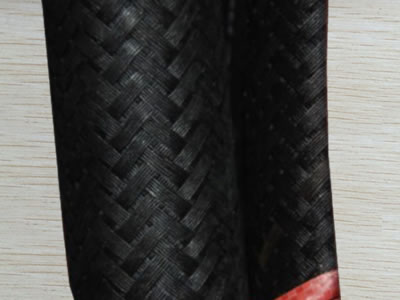

SAE J517 100 R5 hydraulic hose has long service life because of its polymeric fiber braid cover.

The details of SAE J517 type 100 R5 hydraulic hose:

• Structure: it is composed of three parts: tube, reinforcement and cover.
• Tube: black oil and heat resistant synthetic rubber.
• Reinforcement: one layer of high tensile steel wire braid and one layer of textile fiber.
• Cover: polymeric fiber braid immersed by synthetic rubber.
• Temperature range: -40 °C to +100 °C.
• Hose ID: 4.8 mm - 75.5 mm.
• Hose OD: 13.7 mm - 91.7 mm.

The specification of SAE J517 type 100 R5 hydraulic hose
