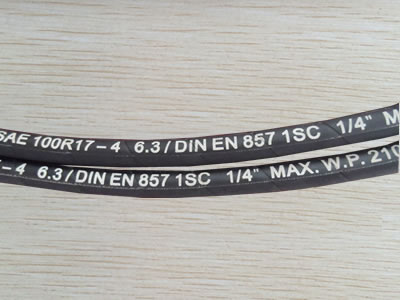

SAE J517 Type 100 R17 Hydraulic Hose with One Steel Wire Braid Reinforcement

SAE J517 type 100 R17 hydraulic hose has smaller bend radius and outside diameter, and it is suitable for hydraulic equipment connection in narrow installation space. It needs stripping outer rubber layer in withholding joints for this kind of hydraulic hose. It is composed of three parts: tube, reinforcement and cover. Tube is made from black oil resistant synthetic rubber, making hose perform well in delivering hydraulic oil. Reinforcement is made from one layer of high tensile steel wire braid, making hose resistant to bending, kink and fatigue. And the high tensile reinforcement makes hose suitable for high working pressure environment. Cover is made from high quality synthetic rubber, making hose resistant to abrasion, corrosion, heat, weather, ozone and aging. And the appearance looks like cloth.

SAE J517 100 R17 hydraulic hose has long service life because of its abrasion, corrosion and aging resistant cover.

SAE J517 100 R17 hydraulic hose is suitable for hydraulic equipment connection in narrow installation space.

The details of SAE J517 type 100 R17 hydraulic hose:

• Structure: it is composed of three parts: tube, reinforcement and cover.
• Tube: black oil resistant synthetic rubber.
• Reinforcement: one layer of high tensile steel wire braid.
• Cover: black oil, corrosion and abrasion resistant synthetic rubber.
• Temperature range: -40 °C to +100 °C.
• Hose ID: 6.4 mm - 25.4 mm.
• Hose OD: 13.2 mm - 38.6 mm.
• Working pressure: 21 MPa (3045 psi).
• Burst pressure: 84 MPa (12180 psi).

The specification of SAE J517 type 100 R17 hydraulic hose
