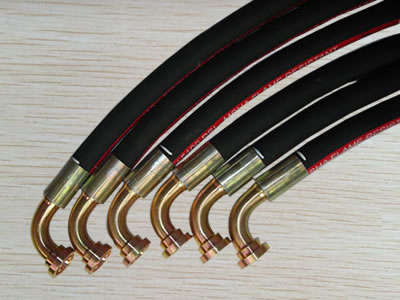

EN854-1TE Hydraulic Hose with One Layer of Textile Fiber Reinforcement

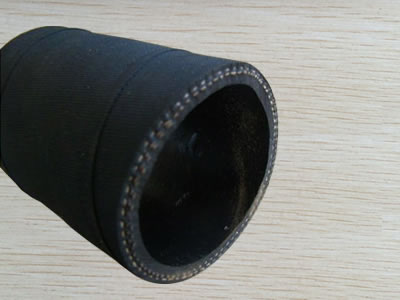

EN 854-1TE hydraulic hose is used to handle hydraulic fluids in accordance with ISO6743-4 with the exception of HRDR, HFDS and HFDT. And the temperature of hydraulic fluids ranges from -40 °C to +100 °C. EN854-1TE hydraulic hose is composed of three parts: tube, reinforcement and cover. Tube is made from oil and water resistant synthetic rubber, making hose have outstanding performance in delivering hydraulic fluids. Reinforcement is made from one layer of high tensile textile fiber braid, making hose lightweight and easy to handle. Cover is made from oil and weather resistant synthetic rubber, making hose work well in harsh environment.
EN854-1TE hydraulic hose works well in harsh environment because of its oil and weather resistant synthetic rubber hose.
EN854-1TE hydraulic hose is lightweight and easy to handle because of its textile fiber braid reinforcement.
The details of EN854-1TE hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: oil and water resistant synthetic rubber.
- Reinforcement: one layer of high tensile textile fiber braid.
- Cover: oil and weather resistant synthetic rubber.
- Temperature range: -40 °C to +100 °C.
- Hose ID: 4.76 mm - 15.88 mm.
The specification of EN854-1TE hydraulic hose (1)
| Hose code | Size | SAE size | Hose ID | Hose OD | Working pressure | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | 1/16 | min | max | min | max | MPa | psi | |
| EN8541TE-01 | 3/16 | 4.76 | -3 | 4.4 | 5.2 | 10 | 11.6 | 2.5 | 363 |
| EN8541TE-02 | 1/4 | 6.35 | -4 | 5.9 | 6.9 | 11.6 | 13.2 | 2.5 | 363 |
| EN8541TE-03 | 5/16 | 7.94 | -5 | 7.4 | 8.4 | 13.1 | 14.7 | 2 | 290 |
| EN8541TE-04 | 3/8 | 9.53 | -6 | 9 | 10 | 14.7 | 16.3 | 2 | 290 |
| EN8541TE-05 | 1/2 | 12.7 | -8 | 12.1 | 13.3 | 17.7 | 19.7 | 1.6 | 232 |
| EN8541TE-06 | 5/8 | 15.88 | -10 | 15.3 | 16.5 | 21.9 | 23.9 | 1.6 | 232 |
The specification of EN854-1TE hydraulic hose (2)
| Hose code | Test pressure | Burst pressure | Min bend radius | Weight | |||
|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | inch | mm | kg/m | |
| EN8541TE-01 | 5 | 725 | 10 | 1450 | 1.378 | 35 | 0.093 |
| EN8541TE-02 | 5 | 725 | 10 | 1450 | 1.772 | 45 | 0.114 |
| EN8541TE-03 | 4 | 580 | 8 | 1160 | 2.559 | 65 | 0.133 |
| EN8541TE-04 | 4 | 580 | 8 | 1160 | 2.953 | 75 | 0.15 |
| EN8541TE-05 | 3.2 | 464 | 6.4 | 928 | 3.543 | 90 | 0.19 |
| EN8541TE-06 | 3.2 | 464 | 6.4 | 928 | 4.528 | 115 | 0.277 |
