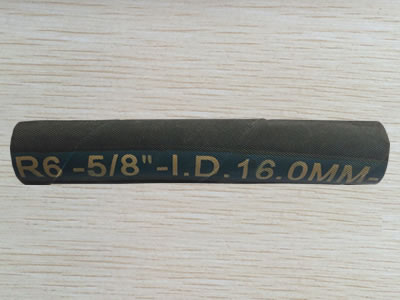

SAE 100 R6 Hydraulic Hose with One Layer of Fiber Braid Reinforcement
SAE 100 R6 hydraulic hose is suitable for petroleum-based hydraulic oil and it is similar to SAE 100 R3 hydraulic hose in structure. It is also composed of three parts: tube, reinforcement and cover. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose work well in delivering oils. Reinforcement is made from one layer of proper fiber braid, making hose lightweight and have solid structure. Cover is made from oil and weather resistant synthetic rubber, making hose have long service life.
SAE 100 R6 hydraulic hose has long service life thanks to its oil and weather resistant synthetic rubber cover.
SAE 100 R6 hydraulic hose is lightweight and easy to handle because of its fiber braid reinforcement.
The details of SAE 100 R6 hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: oil resistant synthetic rubber.
- Reinforcement: one layer of proper fiber braid.
- Cover: oil and weather resistant synthetic rubber.
- Temperature range: -40 °C to +100 °C.
- Hose ID: 5 mm - 19 mm.
The specification of SAE 100 R6 hydraulic hose (1)
| Hose code | Size | SAE size | ID | OD | Working pressure | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | 1/16 | min | max | min | max | MPa | psi | |
| SAE100R6-01 | 3/16 | 5 | -3 | 4.5 | 5.4 | 10.3 | 11.9 | 3.5 | 510 |
| SAE100R6-02 | 1/4 | 6.3 | -4 | 6.1 | 7.0 | 11.9 | 13.5 | 2.8 | 410 |
| SAE100R6-03 | 5/16 | 8 | -5 | 7.6 | 8.5 | 13.5 | 15.1 | 2.8 | 410 |
| SAE100R6-04 | 3/8 | 10 | -6 | 9.2 | 10.1 | 15.1 | 16.7 | 2.8 | 410 |
| SAE100R6-05 | 1/2 | 12.5 | -8 | 12.4 | 13.5 | 19.0 | 20.6 | 2.8 | 410 |
| SAE100R6-06 | 5/8 | 16 | -10 | 15.6 | 16.7 | 22.2 | 23.8 | 2.4 | 350 |
| SAE100R6-07 | 3/4 | 19 | -12 | 18.7 | 19.8 | 25.4 | 27.8 | 2.1 | 310 |
The specification of SAE 100 R6 hydraulic hose (2)
| Hose code | Test pressure | Burst pressure | Min bend radius | Weight | |||
|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | inch | mm | kg/m | |
| SAE100R6-01 | 7 | 1015 | 14 | 2.30 | 1.97 | 50 | 0.10 |
| SAE100R6-02 | 5.6 | 810 | 11.2 | 1620 | 2.56 | 65 | 0.13 |
| SAE100R6-03 | 5.6 | 810 | 11.2 | 1620 | 2.95 | 75 | 0.15 |
| SAE100R6-04 | 5.6 | 810 | 11.2 | 1620 | 2.95 | 75 | 0.18 |
| SAE100R6-05 | 5.6 | 810 | 11.2 | 1620 | 3.94 | 100 | 0.26 |
| SAE100R6-06 | 4.9 | 710 | 9.8 | 1420 | 4.92 | 125 | 0.31 |
| SAE100R6-07 | 4.2 | 610 | 8.4 | 1220 | 5.91 | 150 | 0.40 |
