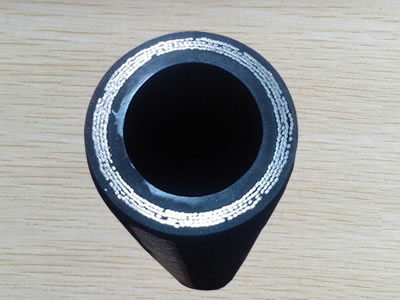

DIN EN856 4SH Hydraulic Hose with Four Layers of Steel Wire Alternating Reinforcement

DIN EN856 4SH hydraulic hose is used to deliver high pressure hydraulic fluids. It is composed of three parts: tube, reinforcement and cover. Tube is made from black oil resistant synthetic rubber, making hose have excellent performance in delivering hydraulic oil. Reinforcement is made from four layers of high tensile and high strength steel wire spiral in alternating directions, making hose have solid structure and bear very high working pressure. Cover is made from black oil, corrosion and abrasion resistant synthetic rubber, making hose have solid structure.

DIN EN856 4SH hydraulic hose has four layers of high tensile steel wire spiral reinforcement, so hose is suitable for high working pressure environment.

DIN EN856 4SH hydraulic hose has four layers of high tensile steel wire spiral alternating reinforcement, making hose have highly solid structure.

The details of DIN EN856 4SH hydraulic hose:

• Structure: it is composed of three parts: tube, reinforcement and cover.
• Tube: black oil resistant synthetic rubber.
• Reinforcement: four layers of high tensile steel wire spiral in alternating directions.
• Cover: black oil, corrosion and abrasion resistant synthetic rubber.
• Temperature range: -40 °C to +100 °C.
• Hose ID: 19 mm - 50.8 mm.
• Reinforcement OD: 29.2 mm - 64.2 mm.
• Hose OD: 33 mm - 69.7 mm.

The specification of DIN EN856 4SH hydraulic hose
