SAE 100 R9 Hydraulic Hose with Four Layers of Steel Wire Spiral Reinforcement
SAE 100 R9 hydraulic hose is suitable for delivering liquids, such as alcohol, hydraulic oil, fuel oil, lubricating oil, emulsified oil and hydrocarbon. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose have excellent performance in delivering various oils, such as hydraulic oil, fuel oil, lubricating oil and emulsified oil. Reinforcement is made from four layers of high tensile steel wire spiral with reinforcing cloth, making hose have solid structure and suitable for high working pressure environment. And the hose is resistant to bending, kink and fatigue thanks to its high tensile steel wire spiral reinforcement. Cover is made from oil and weather resistant synthetic rubber, making hose have long service life.
SAE 100 R9 hydraulic hose is suitable for hydraulic fluids delivery, such as alcohol, hydraulic oil, fuel oil, lubricating oil and emulsified oil.
SAE 100 R9 hydraulic hose is suitable for high working pressure environment because of its high tensile reinforcement.
The details of SAE 100 R9 hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: oil resistant synthetic rubber.
- Reinforcement: four layers of high tensile steel wire spiral with reinforcing cloth.
- Cover: oil and weather resistant synthetic rubber.
- Temperature range: -40 °C to +100 °C.
- Hose ID: 6.4 mm - 50.8 mm.
The specification of SAE 100 R9 hydraulic hose (1)
| Hose code | Size | Inside diameter | Reinforcement diameter | Outside diameter | Working pressure | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | min | max | min | max | min | max | MPa | |
| SAE100R9-01 | 1/4 | 6.4 | 6.2 | 7.0 | 14.2 | 15.2 | 17.2 | 18.4 | 50.0 |
| SAE100R9-02 | 3/8 | 9.5 | 9.3 | 10.1 | 16.9 | 18 | 20.6 | 22.2 | 31.5 |
| SAE100R9-03 | 1/2 | 12.7 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 28 |

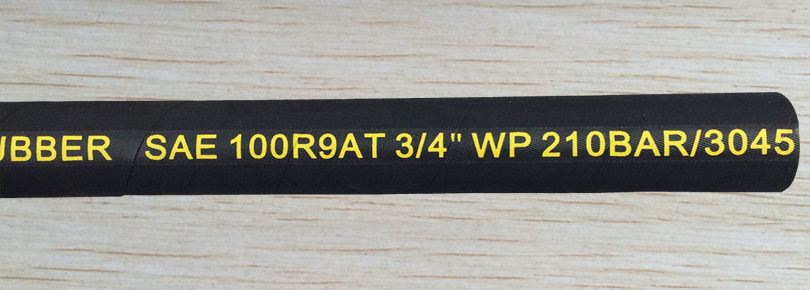

| SAE100R9-04 | 3/4 | 19 | 18.6 | 19.8 | 26.4 | 28.2 | 30.6 | 32.5 | 21 |
| SAE100R9-05 | 1 | 25.4 | 25 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 21 |
| SAE100R9-06 | 1-1/4 | 31.8 | 31.4 | 33.4 | 43.3 | 45.6 | 48.2 | 52.4 | 17.5 |
| SAE100R9-07 | 1-1/2 | 38.1 | 37.7 | 39.7 | 49.6 | 52 | 55.6 | 58.7 | 14 |
| SAE100R9-08 | 2 | 50.8 | 50.4 | 52.4 | 63.9 | 66.2 | 69.9 | 73 | 14 |
The specification of SAE 100 R9 hydraulic hose (2)
| Hose code | Test pressure | Burst pressure | Min bend radius | Weight |
|---|---|---|---|---|
| MPa | MPa | mm | kg/m | |
| SAE100R9-01 | 100.0 | 200.0 | 120 | 0.64 |
| SAE100R9-02 | 63 | 126 | 130 | 0.75 |
| SAE100R9-03 | 56 | 112 | 180 | 0.89 |
| SAE100R9-04 | 42 | 84 | 280 | 1.5 |
| SAE100R9-05 | 42 | 84 | 355 | 2 |
| SAE100R9-06 | 35 | 70 | 460 | 2.8 |
| SAE100R9-07 | 28 | 56 | 560 | 3.4 |
| SAE100R9-08 | 28 | 56 | 710 | 4.25 |
