EN854-3TE Hydraulic Hose with Two Layers of Textile Fiber Braid Reinforcement

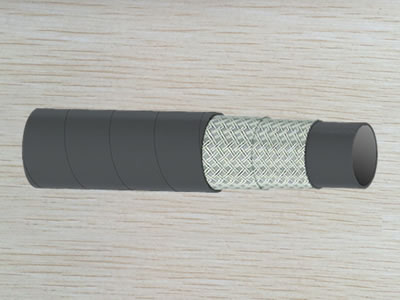

EN854-3TE hydraulic hose is used to handle hydraulic fluids in accordance with ISO6743-4 with the exception of HRDR, HFDS and HFDT at the temperature range of -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil and water resistant synthetic rubber, making hose have excellent performance in delivering hydraulic fluids. Reinforcement is made from two layers of high tensile textile fiber braid, making hose have solid structure and suitable for high working pressure environment. Cover is made from synthetic rubber, which is highly resistant to oil, abrasion, weather and ozone.
EN854-3TE hydraulic hose has solid structure for its two layers of high tensile textile fiber braid reinforcement.
EN854-3TE hydraulic hose is resistant to oil, abrasion, corrosion and weather because of its synthetic rubber cover.
The details of EN854-3TE hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: oil resistant synthetic rubber.
- Reinforcement: two layers of high tensile textile fiber braid.
- Cover: abrasion, weather and ozone resistant synthetic rubber.
- Temperature range: -40 °C to +100 °C.
- Hose ID: 4.76 mm - 50.8 mm.
The specification of EN854-3TE hydraulic hose (1)
| Hose code | Size | SAE size | ID | OD | Working pressure | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | 1/16 | min | max | min | max | MPa | psi | |
| EN8543TE-01 | 3/16 | 4.76 | -3 | 4.4 | 5.2 | 12 | 13.6 | 16 | 2320 |
| EN8543TE-02 | 1/4 | 6.35 | -4 | 5.9 | 6.9 | 13.6 | 15.2 | 14.5 | 2103 |
| EN8543TE-03 | 5/16 | 7.94 | -5 | 7.4 | 8.4 | 16.1 | 17.7 | 13 | 1885 |
| EN8543TE-04 | 3/8 | 9.53 | -6 | 9 | 10 | 17.7 | 19.3 | 11 | 1595 |
| EN8543TE-05 | 1/2 | 12.7 | -8 | 12.1 | 13.3 | 20.7 | 22.7 | 9.3 | 1349 |
| EN8543TE-06 | 5/8 | 15.88 | -10 | 15.3 | 16.5 | 24.9 | 26.9 | 8 | 1160 |
| EN8543TE-07 | 3/4 | 19.05 | -12 | 18.2 | 19.8 | 28 | 30 | 7 | 1015 |
| EN8543TE-08 | 1 | 25.4 | -16 | 24.6 | 26.2 | 34.4 | 37.4 | 5.5 | 798 |
| EN8543TE-09 | 1-1/4 | 31.75 | -20 | 30.8 | 32.8 | 40.8 | 43.8 | 4.5 | 653 |
| EN8543TE-10 | 1-1/2 | 38.1 | -24 | 37.1 | 39.1 | 47.6 | 51.6 | 4 | 580 |
| EN8543TE-11 | 2 | 50.8 | -32 | 49.8 | 51.8 | 60.3 | 64.3 | 3.3 | 479 |
The specification of EN854-3TE hydraulic hose (2)
| Hose code | Test pressure | Burst pressure | Min bend radius | Weight | |||
|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | inch | mm | kg/m | |
| EN8543TE-01 | 32 | 4640 | 64 | 9280 | 1.57 | 40 | 0.129 |
| EN8543TE-02 | 29 | 4206 | 58 | 8412 | 1.77 | 45 | 0.153 |
| EN8543TE-03 | 26 | 3770 | 52 | 7540 | 2.16 | 55 | 0.210 |
| EN8543TE-04 | 22 | 3190 | 44 | 6380 | 2.75 | 70 | 0.241 |
| EN8543TE-05 | 18.6 | 2698 | 37.2 | 5396 | 3.35 | 85 | 0.299 |
| EN8543TE-06 | 16 | 2320 | 32 | 4640 | 4.13 | 105 | 0.405 |
| EN8543TE-07 | 14 | 2030 | 28 | 4060 | 5.12 | 130 | 0.470 |
| EN8543TE-08 | 11 | 1596 | 22 | 3192 | 5.91 | 150 | 0.633 |
| EN8543TE-09 | 9 | 1306 | 18 | 2612 | 7.48 | 190 | 0.774 |
| EN8543TE-10 | 8 | 1160 | 16 | 2320 | 9.45 | 240 | 0.973 |
| EN8543TE-11 | 6.6 | 958 | 13.2 | 1916 | 11.81 | 300 | 1.246 |
