SAE J517 Type 100 R12 Hydraulic Hose Suitable for Harsh Working Environment

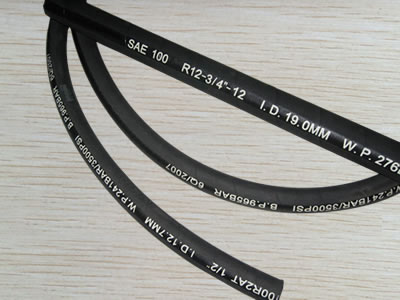

SAE J517 type 100 R12 hydraulic hose is suitable for engineering machinery and continuous working hydraulic equipment. It has excellent hot oil and impulse resistance. And it is suitable for high temperature environment. It is composed of three parts: tube, reinforcement and cover. Tube is made from black oil resistant synthetic rubber, making hose work well in delivering oils. Reinforcement is made from four layers of high tensile steel wire spiral, making hose suitable for high working pressure and resistant to bend and fatigue. Cover is made from black oil, corrosion and abrasion resistant synthetic rubber, making hose suitable for harsh environment. And the appearance looks like cloth.
SAE J517 100 R12 hydraulic hose is suitable for engineering machinery and continuous working hydraulic equipment.
SAE J517 100 R12 hydraulic hose is suitable for high working pressure environment because of its steel wire spiral reinforcement.
The details of SAE J517 type 100 R12 hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: black oil resistant synthetic rubber.
- Reinforcement: four layers of high tensile steel wire spiral.
- Cover: black oil, corrosion and abrasion resistant synthetic rubber.
- Temperature range: -40 °C to +121 °C.
- Hose ID: 9.5 mm - 50.8 mm.
- Reinforcement OD: 17.8 mm - 64.8 mm.
- Hose OD: 21 mm - 68.3 mm.
The specification of SAE J517 type 100 R12 hydraulic hose
| Hose code | Hose ID | Rein OD | Hose OD | Working pressure | Burst pressure | Min bend radius | Weight | Length | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
| SAEJ517100R12-01 | 3/8 | 9.5 | 17.8 | 21 | 27.5 | 4000 | 110.3 | 16000 | 125 | 0.62 | 20 - 50 |
| SAEJ517100R12-02 | 1/2 | 12.7 | 21.5 | 24.6 | 27.5 | 4000 | 110.3 | 16000 | 180 | 0.85 | 20 - 50 |
| SAEJ517100R12-03 | 5/8 | 15.9 | 25.4 | 28.2 | 27.5 | 4000 | 110.3 | 16000 | 200 | 1.29 | 20 - 50 |
| SAEJ517100R12-04 | 3/4 | 19 | 28.5 | 31.7 | 27.5 | 4000 | 110.3 | 16000 | 240 | 1.47 | 20 - 40 |
| SAEJ517100R12-05 | 1 | 25.4 | 36 | 39.2 | 27.5 | 4000 | 110.3 | 16000 | 300 | 2 | 20 - 40 |
| SAEJ517100R12-06 | 1-1/4 | 31.8 | 45.1 | 48.6 | 20.7 | 3000 | 82.7 | 12000 | 420 | 2.86 | 20 - 40 |
| SAEJ517100R12-07 | 1-1/2 | 38.1 | 51.6 | 55 | 17.2 | 2500 | 69.0 | 10000 | 500 | 3.24 | 20 - 40 |
| SAEJ517100R12-08 | 2 | 50.8 | 64.8 | 68.3 | 17.2 | 2500 | 69.0 | 10000 | 630 | 4.8 | 20 - 40 |
