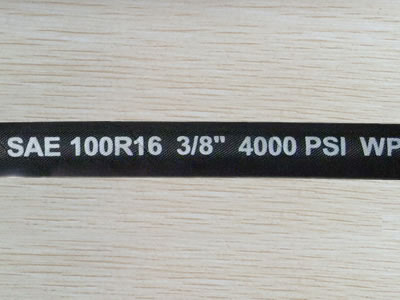

SAE 100 R16 Hydraulic Hose with One or Two Steel Wire Braid Reinforcement
SAE 100 R16 hydraulic hose is suitable for high working pressure applications and it is mainly used for hydraulic oil delivery. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose perform well in delivering hydraulic oil. Reinforcement is made from one layer or two layers of high tensile steel wire braid, making hose have solid structure and suitable for high working pressure environment. And the high tensile steel wire braid reinforcement makes hose resistant to bend, kink and fatigue. Cover is made from oil, corrosion and abrasion resistant synthetic rubber, making hose have long service life. Therefore, it is becoming more and more popular in many places.
SAE 100 R16 hydraulic hose is suitable for high working pressure environment because of its high tensile steel wire reinforcement.
SAE 100 R16 hydraulic hose performs well in delivering hydraulic fluids thanks to its synthetic rubber tube.
The details of SAE 100 R16 hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: oil resistant synthetic rubber.
- Reinforcement: one layer or two layers of high tensile steel wire braid.
- Cover: oil, abrasion and corrosion resistant synthetic rubber.
- Temperature range: -40 °C to +100 °C.
- Hose ID: 6.4 mm - 25.4 mm.
- Hose OD: 13.4 mm - 35.9 mm.
The specification of SAE 100 R16 hydraulic hose
| Hose code | Hose ID | Hose OD | Working pressure | Burst pressure | Min bend radius | Weight | Length | |||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | m | |
| SAE100R16-01 | 1/4 | 6.4 | 13.4 | 34.5 | 5000 | 138 | 20000 | 50 | 0.27 | 50/100 |
| SAE100R16-02 | 5/16 | 7.9 | 15.0 | 29.3 | 4250 | 117 | 17000 | 55 | 0.35 | 50/100 |
| SAE100R16-03 | 3/8 | 9.5 | 17.4 | 27.5 | 4000 | 110 | 16000 | 65 | 0.42 | 50/100 |
| SAE100R16-04 | 1/2 | 12.7 | 20.6 | 24.0 | 3500 | 96 | 14000 | 90 | 0.52 | 50/100 |
| SAE100R16-05 | 5/8 | 15.9 | 23.8 | 19.0 | 2750 | 62 | 11000 | 100 | 0.63 | 50/100 |
| SAE100R16-06 | 3/4 | 19.0 | 27.8 | 15.5 | 2250 | 55 | 9000 | 120 | 0.81 | 50 |
| SAE100R16-07 | 1 | 25.4 | 35.9 | 13.8 | 2000 | 45 | 8000 | 150 | 1.17 | 50 |
