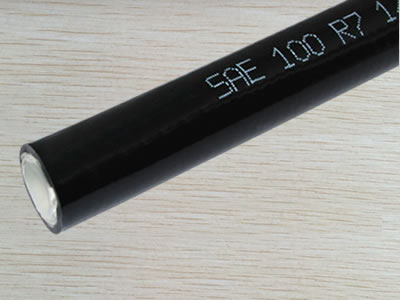

SAE 100 R7 Hydraulic Hose with Smooth Nylon Inner Tube
SAE 100 R7 hydraulic hose, also called EN856 R7 hydraulic hose, is mainly used for various machinery tools, such as engineering machinery, agricultural machine and hydraulic control system. It is composed of two parts: tube and reinforcement. Tube is made from nylon, making the tube very smooth. So this kind of hydraulic hose has excellent performance in delivering hydraulic fluids. Reinforcement is made from nylon or thermoplastic, making hose lightweight and easy to handle. Besides, the hose is resistant to chemical and impulse.
SAE 100 R7 hydraulic hose has excellent performance in delivering hydraulic oil thanks to its nylon tube.
SAE 100 R7 hydraulic hose is lightweight and easy to handle for its reinforcement.
The details of SAE 100 R7 hydraulic hose:
- Structure: it is composed of two parts: tube and reinforcement.
- Tube: nylon.
- Reinforcement: nylon or thermoplastic.
- Temperature range: -40 °C to +93 °C.
- Hose ID: 4.76 mm - 25.4 mm.
The specification of SAE 100 R7 hydraulic hose (1)
| Hose code | Size | SAE size | ID | OD | Working pressure | |||
|---|---|---|---|---|---|---|---|---|
| inch | mm | 1/16 | min | max | max | MPa | psi | |
| SAE100R7-01 | 3/16 | 4.76 | -3 | 4.6 | 5.4 | 11.4 | 21 | 3045 |
| SAE100R7-02 | 1/4 | 6.35 | -4 | 6.2 | 7.0 | 13.7 | 19.2 | 2780 |
| SAE100R7-03 | 5/16 | 7.94 | -5 | 7.7 | 8.5 | 15.6 | 17.5 | 2535 |
| SAE100R7-04 | 3/8 | 9.53 | -6 | 9.3 | 10.3 | 18.4 | 15.7 | 2275 |
| SAE100R7-05 | 1/2 | 12.7 | -8 | 12.3 | 13.5 | 22.5 | 14 | 2030 |
| SAE100R7-06 | 5/8 | 15.88 | -10 | 15.5 | 16.7 | 25.8 | 10.5 | 1520 |
| SAE100R7-07 | 3/4 | 19.05 | -12 | 18.6 | 19.8 | 28.6 | 8.7 | 1260 |
| SAE100R7-08 | 1 | 25.4 | -16 | 25.0 | 26.4 | 36.7 | 7 | 1015 |
