SAE 100 R14 Hydraulic Hose with Stainless Steel Braid Reinforcement
SAE 100 R14 hydraulic hose is suitable for hydraulic fluids delivery, such as mineral oils, hydraulic oil, fuel oil, emulsified oil and hydrocarbon. It is composed of two parts: inner tube and reinforcement. Inner tube is made from white PTFE, which is resistant to various hydraulic fluids, corrosion and high & low temperature. Reinforcement is made from one layer of high tensile stainless steel braid, making hose resistant to abrasion and has high flexibility. So the hose is suitable for high pressure and harsh working environment.

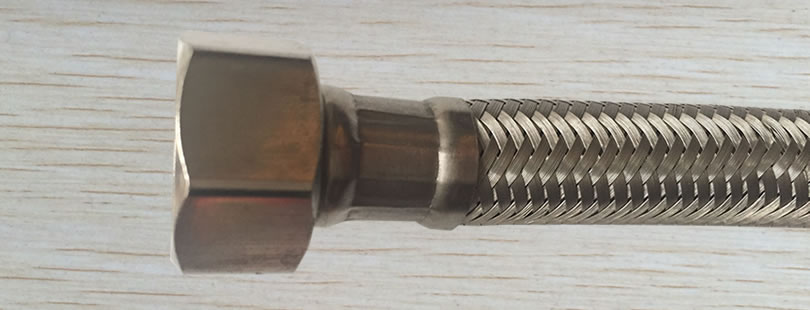

SAE 100 R14 hydraulic hose has stainless steel braid reinforcement, making hose have high strength and high flexibility.
SAE 100 R14 has corrosion resistant PTFE tube, making hose have excellent performance in delivering hydraulic fluids.
The details of SAE 100 R14 hydraulic hose:
- Structure: it is composed of two parts: tube and reinforcement.
- Tube: white PTFE.
- Reinforcement: one layer of high tensile stainless steel braid.
- Temperature range: -60 °C to +260 °C.
- Hose ID: 4.76 mm - 19.05 mm.
The specification of SAE 100 R14 hydraulic hose
| Hose code | Inner diameter | Hose thickness | Working pressure | Burst pressure | Bending radius | |||
|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | mm | |
| SAE100R14-01 | 3/16 | 4.76 | 1 | 206 | 3000 | 827 | 12000 | 36 |
| SAE100R14-02 | 1/4 | 6.35 | 1 | 175 | 2537 | 700 | 10150 | 45 |
| SAE100R14-03 | 5/16 | 7.94 | 1 | 150 | 2175 | 600 | 8700 | 50 |
| SAE100R14-04 | 3/8 | 9.53 | 1 | 135 | 1957 | 540 | 7830 | 55 |
| SAE100R14-05 | 1/2 | 12.7 | 1 | 120 | 1740 | 480 | 6960 | 70 |
| SAE100R14-06 | 5/8 | 15.88 | 1.5 | 100 | 1450 | 400 | 5800 | 130 |
| SAE100R14-07 | 3/4 | 19.05 | 1.5 | 90 | 1305 | 360 | 5220 | 190 |
