SAE 100 R8 Hydraulic Hose with Thermoplastic Tube and Cover
SAE 100 R8 hydraulic hose is mainly used for hydraulic fluids delivery at the temperature range of -40 °C to +93 °C, such as mineral oil, hydraulic oil and emulsified oil. It is composed of three parts: tube, reinforcement and cover. Tube is made from high quality thermoplastic which is resistant to hydraulic fluids. Reinforcement is made from two layers of synthetic fiber braid. And cover is made from thermoplastic which is resistant to hydraulic fluids, weather, abrasion and corrosion.
SAE 100 R8 hydraulic hose is mainly used to deliver hydraulic fluids, such as mineral oil, hydraulic oil and emulsified oil.
SAE 100 R8 hydraulic hose is resistant to weather, abrasion and corrosion thanks to its thermoplastic cover.
The details of SAE 100 R8 hydraulic hose:

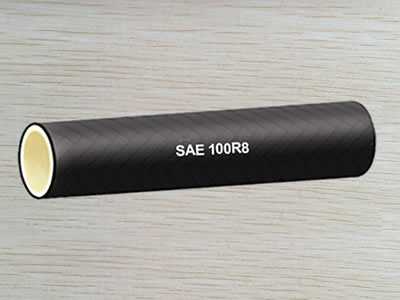

- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: hydraulic fluids resistant thermoplastic.
- Reinforcement: two layers of synthetic fiber braid.
- Cover: hydraulic fluids, weather, abrasion and corrosion resistant thermoplastic.
- Temperature range: -40 °C to +93 °C.
- Hose ID: 4.76 mm - 19.05 mm.
The specification of SAE 100 R8 hydraulic hose (1)
| Hose code | Size | SAE size | ID | OD | Working pressure | |||
|---|---|---|---|---|---|---|---|---|
| inch | mm | 1/16 | min | max | max | MPa | psi | |
| SAE100R8-01 | 3/16 | 4.76 | -3 | 4.5 | 5.4 | 14.6 | 35 | 5075 |
| SAE100R8-02 | 1/4 | 6.35 | -4 | 6.1 | 7.0 | 16.8 | 35 | 5075 |
| SAE100R8-03 | 5/16 | 7.94 | -5 | 7.6 | 8.5 | 20.3 | 28 | 4060 |
| SAE100R8-04 | 3/8 | 9.53 | -6 | 9.2 | 10.1 | 24.6 | 24.5 | 3550 |
| SAE100R8-05 | 1/2 | 12.7 | -8 | 12.4 | 13.5 | 29.8 | 19.2 | 2780 |
| SAE100R8-06 | 5/8 | 15.88 | -10 | 15.6 | 16.7 | 33.0 | 15.7 | 2275 |
| SAE100R8-07 | 3/4 | 19.05 | -12 | 18.7 | 19.8 | 38.6 | 14 | 2030 |
The specification of SAE 100 R8 hydraulic hose (2)
| Hose code | Test pressure | Burst pressure | Min bend radius | Weight | |||
|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | inch | mm | kg/m | |
| SAE100R8-01 | 70 | 10150 | 140 | 20300 | 3.54 | 90 | 0.10 |
| SAE100R8-02 | 70 | 10150 | 140 | 20300 | 3.94 | 100 | 0.13 |
| SAE100R8-03 | 56 | 8120 | 112 | 16240 | 4.92 | 125 | 0.15 |
| SAE100R8-04 | 49 | 7105 | 98 | 14210 | 7.09 | 180 | 0.18 |
| SAE100R8-05 | 38.5 | 5580 | 77 | 11165 | 8.07 | 205 | 0.26 |
| SAE100R8-06 | 31.5 | 4565 | 63 | 9135 | 9.45 | 240 | 0.31 |
| SAE100R8-07 | 28 | 4060 | 56 | 8120 | 11.81 | 300 | 0.40 |
